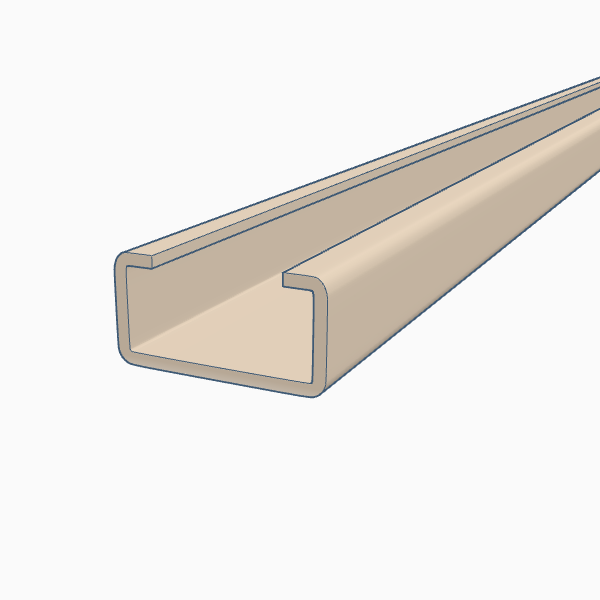

OPEN TUBE PROFILE
Open tubular and quadrangular profile, with various structural applications such as batten, rail, frame, manufacture of shelves, car bodies, furniture, and metal constructions and structures in general.
Cierres Hogar manufactures various measures of open tube in galvanised or cold rolled steel from 1.5 to 3 mm thick.
| A (mm) | B (mm) | C (mm) | e (mm) | Finishings |
|---|---|---|---|---|
| 30 | 30 | 9,5 | 1,5/2 | Galvanized and mild steel |
| 30 | 50 | 15 | 3 | Galvanized and mild steel |
| 50 | 120 | 15 | 3 | Galvanized and mild steel |
| 50-80 | 140-300* | 8-20* | 1,5-3* | Galvanized and mild steel |
Do you need more technical specifications?
Download the technical data sheet to find out the composition, properties and applications of the different models. Contact the Cierres del Hogar team of experts if you have any specific technical and/or commercial questions..
WORK COMPLETED
Special Courts
San Salvador de Bahía
The thickness of the facade has been covered with an Aluacero panel. The multi-perforated model allows light to enter the rooms. These micro-perforations enable correct ventilation of the facade and the panels, preventing overheating.
The lacquering on the panels makes the building stand out and gives it a much more modern appearance.
It is quick to install and does not require highly skilled labour.
