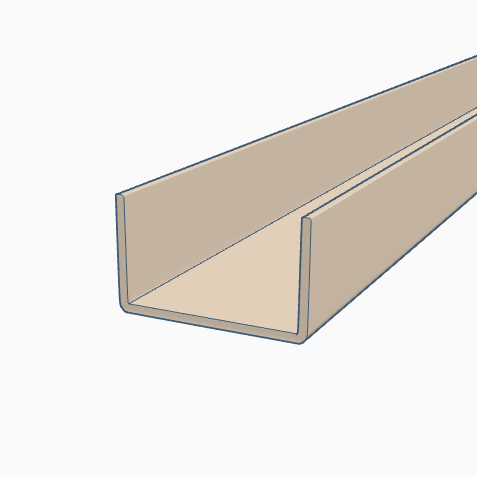

“U” PROFILE
U-shaped metal profile, with countless applications in all sectors: construction, agriculture, transport, furniture, car bodies, construction of metal structures in general.
Cierres Hogar manufactures a wide range of U profile in galvanised, cold rolled and hot rolled steel, between 1.5 and 4 mm thick.
Among its many uses, the U-20x40x20 mm is used as a frame, subframe or finish for Aluacero Panels and for this reason it is also manufactured in 2 mm aluminum.
| AxBxC - e (mm) | H (mm) | Poids (Kg/m) | Finitions |
|---|---|---|---|
| 3x11x45x11x3 - 1,5 | 64 | 0,895 | Acier galvanisé et brut (décapé) |
| 11x24x63x24x11 - 2 | 106 | 2,000 | Acier galvanisé et brut (décapé) |
| 11x24x77x24x11 - 2 | 120 | 2,245 | Acier galvanisé et brut (décapé) |
| 11x24x98x24x11 - 2 | 140 | 2,575 | Acier galvanisé et brut (décapé) |
Do you need more technical specifications?
Download the technical data sheet to find out the composition, properties and applications of the different models. Contact the Cierres del Hogar team of experts if you have any specific technical and/or commercial questions..
WORK COMPLETED
Special Courts
San Salvador de Bahía
The thickness of the facade has been covered with an Aluacero panel. The multi-perforated model allows light to enter the rooms. These micro-perforations enable correct ventilation of the facade and the panels, preventing overheating.
The lacquering on the panels makes the building stand out and gives it a much more modern appearance.
It is quick to install and does not require highly skilled labour.
